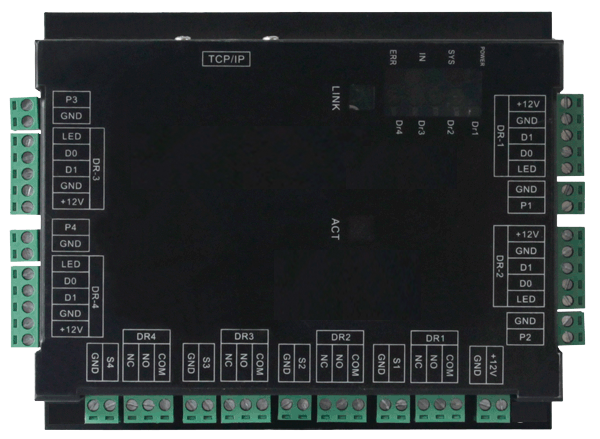

RCon71
IP Based Singal Door Access Controller
- TCP/IP and RS-485 communication
- Built-in auxiliary input and output
- Advanced access control functions
Description:
PMS Control Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install.
Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location.
The controller can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Specifiation:
| Number of Doors Controlled | 1 Door |
| Number of Readers Supported | 2 |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status, AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Number of Doors Controlled | 1 Door |
| Number of Readers Supported | 2 |
| Types of Readers Supported | 26-bit Wiegand, others upon request |
| Number of Inputs | 2 (Exit Device and Door Status, AUX) |
| Number of Outputs | 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) |
| Card Holders Capacity | 20,000 |
| Log Events Capacity | 100,000 |
| Weight | 7.4lbs (3.35kg) |
| Communication | TCP/IP and RS-485 |
| Enclosure | Powder Coated Aluminium |
| Mounting | Wall Mount |
| Recommended Power Supply Supply | 12V DC, 1.5A |
| Dimensions (Bundle Only) | 162mm(L) X 135mm(W) X42mm(H) |

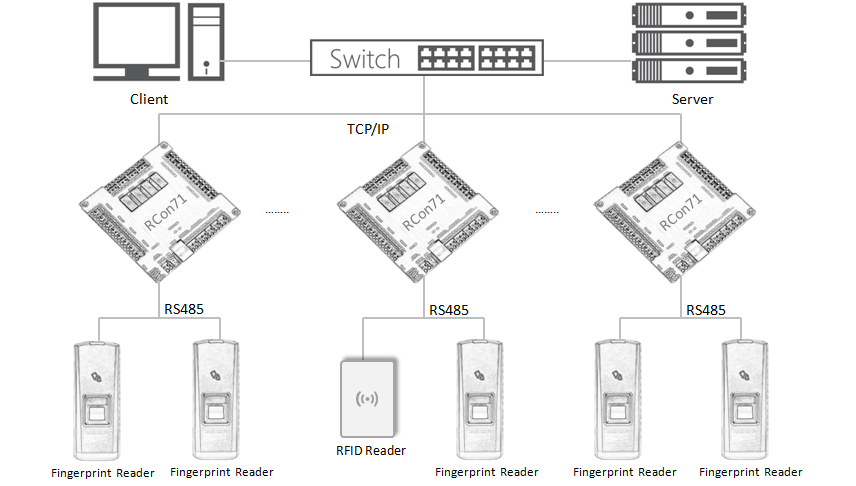

Application:
