Description:

RAC71 is a professional fingerprint access control system which fully integrates LCD, keypad, optical fingerprint sensor, card reader and professional access control components. The very compact design makes it suitable for installation on doorframes. RAC71 can be used for both simple access control and separate type secure access control. In addition, RAC71 has Wiegand input and output, direct lock control, alarm output and doorbell output for a complete access control solution. USB plug and play, RS485 and TCP/IP communication is available for all kinds of installation sites. Optional ID, Mifare card reader is specially designed for the existing card users and higher security level. RAC71 can work perfectly to meet different demands for access control.

Function:

• World leading brand. Korean industrial design. Elegant Color LCD

• New generation fully sealed, and dustproof fingerprint sensor

• Core fingerprint algorithm for T&A and access control,

• high performance and reliability

• Professional fingerprint strengthen membrane. Improved performance to dry or wet fingers.

• Stand-alone without being connected with computer

• Standard fingerprint capacity 1000. Standard record capacity 100000

• Multiple identification method: FP,ID+PW,ID+FP,ID+Card,Card

• Standard RFID

• Standard Mini USB, RS485 and TCP/IP networking communication

• Can directly drive the electric lock to open the door.

• Optional access controller for separate type secure access control

• Tamper alarm output to connect with alarm equipment outside and output the alarm card No. to controller by Wiegand26

• Support time zone, group access control and realtime data monitor, easy-to-use and use-friendly software

• Wall mounted, combine 2-in-1 function for time attendance and access control

Specification:

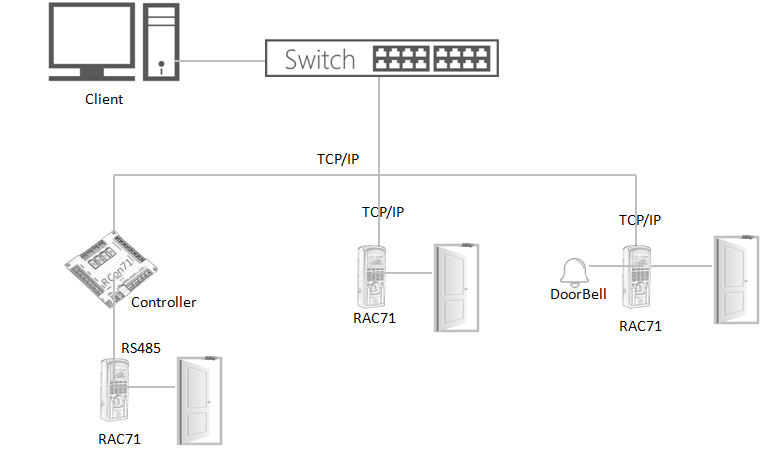

Application:

Processor	ARM926EJ
Sensor	Optical Sensor
Scan Area	22mm*18mm
Resolution	500 DPI
User Capacity	1000
Fingerprint capacity	1000
Records capacity	100000
LCD	2.4'' color screen
Identification Mode	FP, Card, ID+FP, ID+PW, PW+Card, FP+Card
Identification Time	<=0.8s(1:N)
FRR	0.001%
FAR	0.00001%
Communication Interface	U disk,TCP/IP,USB,P2P(optinion), wiegand in/out
Name Display	Yes
Fingerprint Image Display	Yes
Voice Prompt	Yes
Scheduled Bell	Yes
Relay	DC 12V, Relay Output(COM, NO, NC)
Size	190(w)*80(h)*39(d)mm
Temperature	-10℃~40℃
IP Level	IP53
Certificates	FCC, CE
